In the face of modern CPU limitations, Intel’s newly exposed Software-Defined Super Core (SDC) patent promises a breakthrough in single-thread performance and energy efficiency. By dynamically combining multiple physical cores into a virtual super core, Intel aims to deliver higher IPC (instructions per cycle) and improved processing power without increasing voltage or frequency, potentially reshaping the future of x86 processor architecture.
Why Intel’s SDC Could Redefine CPU Design #
For decades, CPU single-thread performance improvements have followed two main strategies:
- Larger cores to execute more instructions per cycle (IPC).
- Higher frequencies to speed up instruction processing.
But both strategies have reached practical limits. Larger cores demand more chip area and transistors, while higher frequencies sharply increase power consumption and heat—making them unsuitable for efficiency-sensitive environments.
Intel’s Software-Defined Super Core (SDC) introduces a new approach:

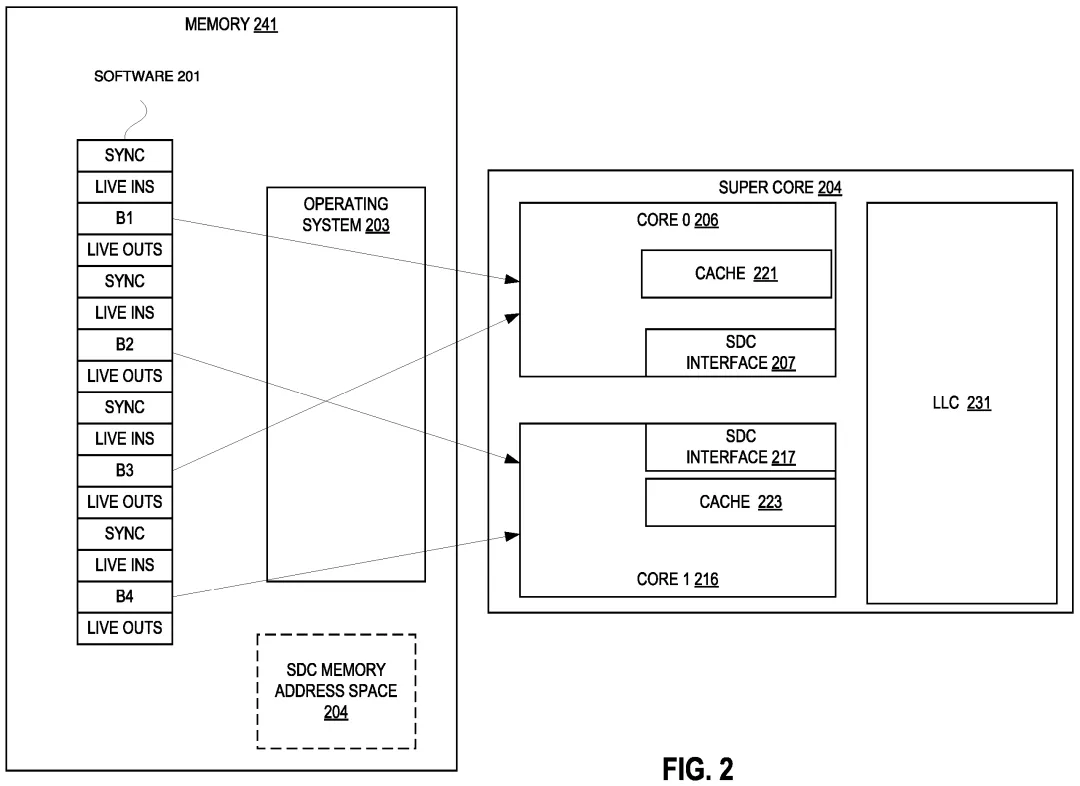

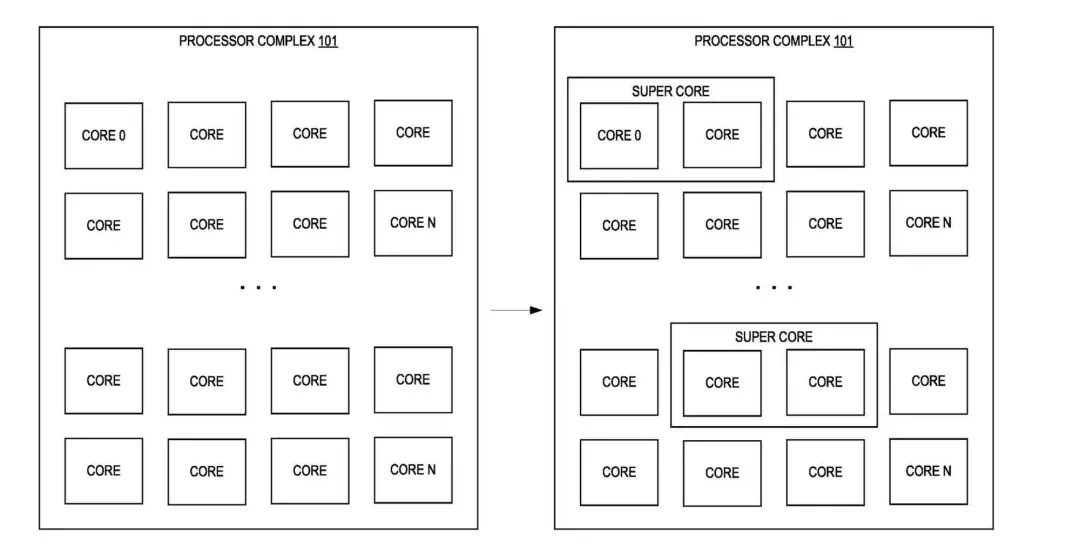

- Multiple physical cores (for example, two or more 4-wide x86 cores) can be dynamically fused into a virtual super core using software orchestration.
- To the operating system and applications, this super core looks like a single high-performance core.
- Behind the scenes, several physical cores collaborate to accelerate single-thread workloads.
Crucially, SDC achieves this without increasing voltage or frequency, sidestepping the power and thermal issues that plague traditional scaling.
This move also reflects competitive pressures. Apple’s custom Arm cores (e.g., Firestorm, Avalanche) already execute up to 10+ instructions per cycle, while mainstream x86 cores typically max out at 8–9 micro-ops. Designing wider x86 cores beyond 8-wide faces diminishing returns, higher cost, and efficiency trade-offs. Instead, SDC proposes a different balance: use multiple narrow cores working in unison to emulate wide-core performance.
How Intel’s SDC Works: Virtual Core Fusion #
Intel’s patent describes a hybrid hardware-software co-design that minimizes overhead while enabling seamless parallel execution of single-threaded workloads.
Hardware Side: Lightweight Modules for Order and Synchronization #
Each SDC-enabled physical core integrates a compact hardware unit to manage coordination without disrupting program order. Key features include:
-
Synchronization & Data Transfer:

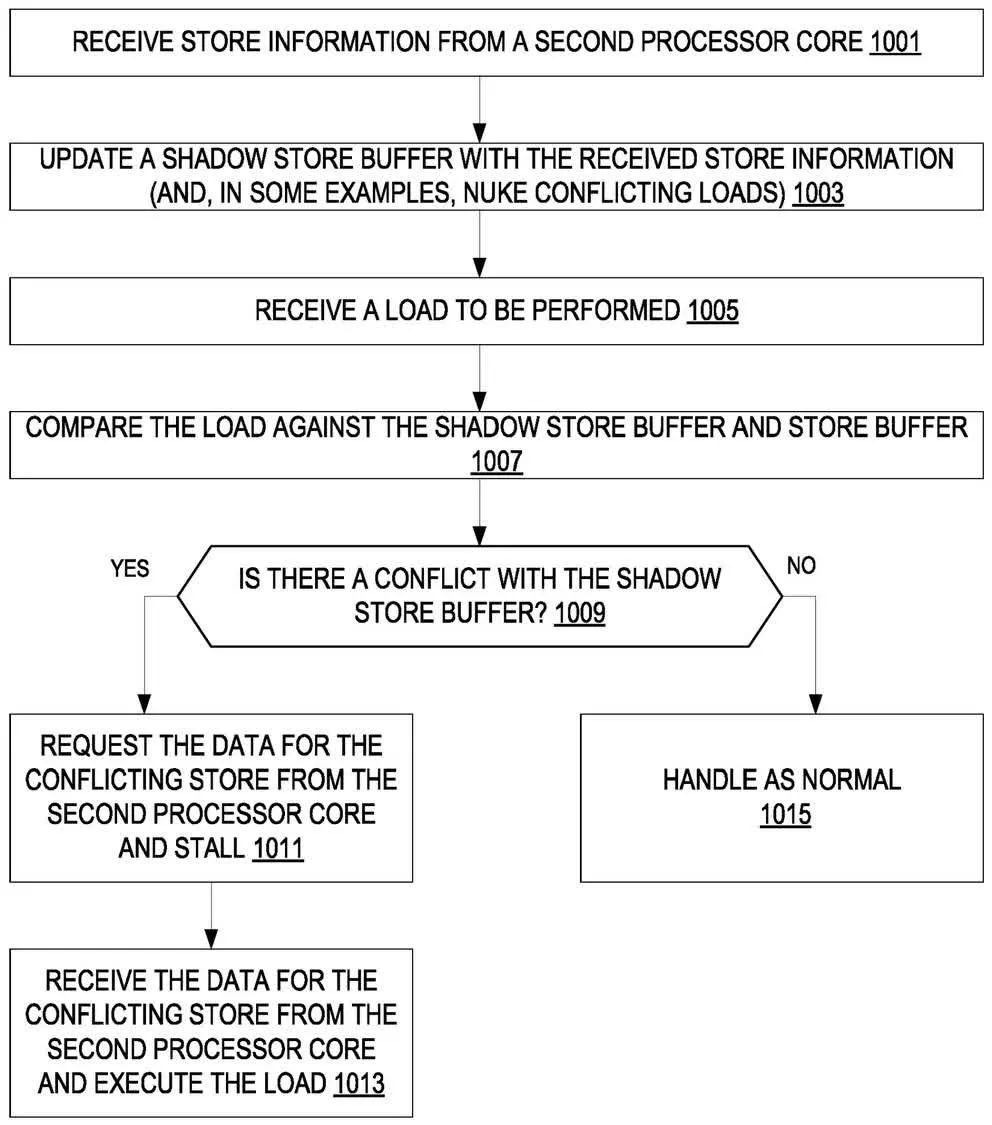

Using the Shadow Store Buffer and a wormhole address space, cores maintain program order and share live-in/live-out data efficiently.
Shadow Store Buffer Workflow -
Compatibility:
Supports both in-order and out-of-order cores with minimal architectural changes, keeping die area and production costs low. -
Low-latency communication:
Intel claims SDC overhead is ~5%, far below the 25–40% of pure software solutions—ensuring performance gains outweigh costs.
Software Side: Smart Splitting and Dynamic Scheduling #
The “software-defined” aspect comes from task partitioning and adaptive scheduling:
-
Task Splitting:
Just-in-time (JIT) compilers, static compilers, or binary instrumentation automatically break single-threaded code into independent blocks for execution across multiple cores. -
Dynamic OS Scheduling:
The operating system decides when to enable “super core mode.” For example, during AI inference or real-time data processing, SDC can be activated; when demand drops, the system reverts to normal cores to save power.
Potential Benefits of SDC #
While Intel’s patent doesn’t specify benchmark results, the design implies significant upside:
- Higher IPC without higher power: Multiple narrow cores mimic wide-core throughput, extending turbo boost duration or enabling low-voltage efficiency—ideal for laptops.
- Performance-on-demand: Cloud and hyperscale providers could toggle SDC for latency-sensitive workloads like AI inference or real-time analytics.
- Consumer gains: Laptops and PCs could dynamically switch into SDC mode for gaming or video editing, then revert for longer battery life.
- Architecture simplification: By replacing big.LITTLE heterogeneity with software-defined performance scaling, Intel could streamline future designs.
Intel’s Strategic Alignment: From Hybrid to Unified Cores #
Intel’s SDC patent fits neatly into its simplified architecture strategy under CEO Pat Gelsinger. Reports suggest Intel may abandon its P-core + E-core hybrid model after 2027 (Razer Lake), shifting to a unified core architecture starting with Titan Lake in 2028.
In such a model:
- Standard narrow cores (e.g., 4-wide x86 cores) serve as the building blocks.
- SDC enables them to fuse into high-performance super cores when needed.
This approach could reduce design complexity while preserving performance scalability across devices—from laptops to data centers.
Challenges on the Road to Commercialization #
Despite its promise, SDC faces hurdles before mass adoption:
- Patent approval timeline: Intel’s filing with the European Patent Office (EPO) must clear an 18-month publication and review process, with limited but possible third-party objections.
- Engineering barriers: Ultra-low-latency inter-core communication remains a key challenge. Any synchronization delays could erode performance gains.
- Ecosystem readiness: Compilers, operating systems, and applications must adapt to fully exploit SDC’s potential.
- Product roadmap uncertainty: Intel files thousands of patents yearly, but only a fraction reach products. The earliest possible rollout may be in Titan Lake (2028), potentially starting with data center CPUs before consumer devices.
What SDC Means for the Future of CPUs #
Intel’s Software-Defined Super Core represents more than just one patent—it signals a broader shift in CPU evolution. As Moore’s Law slows and hardware scaling alone becomes insufficient, software-defined performance scaling could unlock the next wave of computing breakthroughs.
For Intel, SDC could be a critical weapon in competing with AMD and Apple, while simplifying its architecture strategy. For the broader industry, it underscores an important truth: even when transistor scaling plateaus, architectural innovation can still push computing forward.
In short: Intel’s SDC patent highlights a future where software-defined hardware enables CPUs to flexibly balance performance, power, and efficiency—a potential paradigm shift in processor design.
