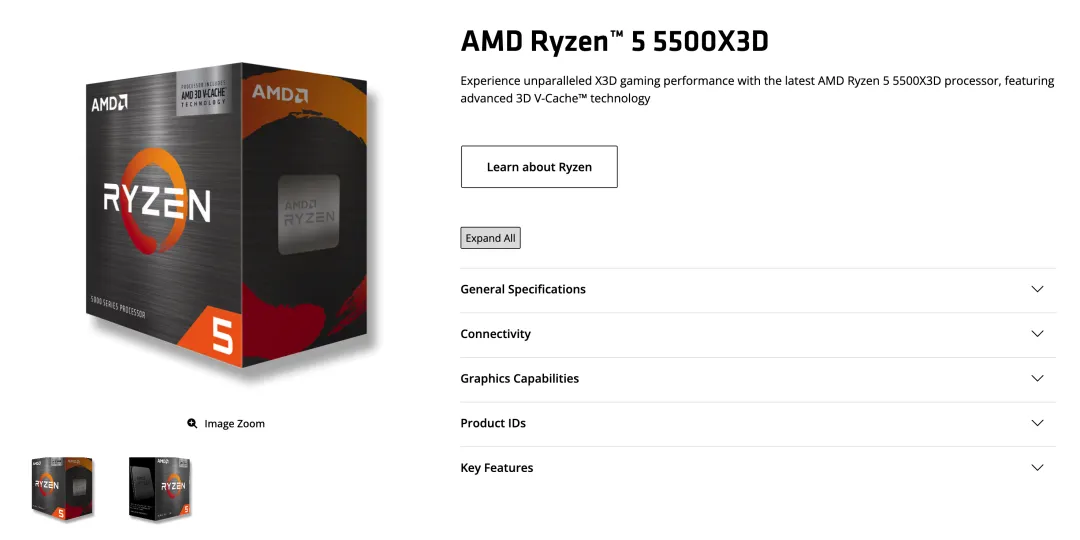

AMD has recently, and somewhat discreetly, unveiled a new processor on its official website: the Ryzen 5 5500X3D. This 6-core, 12-thread CPU, aimed at budget-conscious gamers, is built on the Zen 3 architecture and manufactured using TSMC’s 7nm process. With its 3D V-Cache technology and compatibility with the AM4 socket, it offers a highly cost-effective upgrade option for users with existing systems.
Key Specifications and Performance #
The core specifications of the Ryzen 5 5500X3D include a 3 GHz base clock and a 4 GHz maximum boost clock, which is slightly lower compared to the Ryzen 5 5600X3D (3.3 GHz base, 4.4 GHz boost). The processor is equipped with 384 KB of L1 cache, 3 MB of L2 cache, and a substantial 96 MB of L3 cache, with a TDP of 105 W.
The 3D V-Cache technology significantly boosts gaming performance by stacking an additional cache layer, proving particularly effective in scenarios with high random data access. Tests indicate that this processor can achieve a 15-20% performance improvement in games like Cyberpunk 2077 and Starfield when compared to the Ryzen 5 5600X. However, in multi-threaded tasks such as Blender rendering or streaming, its performance is slightly inferior to 8-core models.
AM4 Compatibility and Power Recommendations #
The AM4 socket compatibility is arguably the Ryzen 5 5500X3D’s core advantage. Current information confirms support for B550, X570, and some B450 motherboards (requiring a BIOS update) when used with DDR4 memory. X3D chips are less sensitive to memory frequency, offering limited benefits from memory overclocking.
For power supply, it’s recommended to use at least a 550 W PSU to support mid-range graphics cards like the NVIDIA RTX 4060 or AMD RX 7600 XT. If pairing with high-end graphics cards such as the RTX 4070 Ti, a 750 W PSU is recommended to avoid bottlenecks.
Pricing and Market Positioning #
The Ryzen 5 5500X3D is not yet officially listed but is expected to be priced between $150-$200, making it more affordable than the Ryzen 7 5700X3D and Ryzen 5 5600X3D. In comparison, the AM5 platform’s Ryzen 5 9600X sells for approximately 1400 RMB (roughly $190 USD), but it requires DDR5 memory and more expensive motherboards, which could add over 1000 RMB (approx. $140 USD) to the total cost. Therefore, for users sticking with the AM4 platform, the Ryzen 5 5500X3D offers exceptional value for money.
In performance comparisons, the Ryzen 5 5500X3D’s gaming performance is close to that of the Ryzen 7 5800X3D, but at a lower price point. Compared to Intel’s Core i5-13400F, its gaming performance is comparable, though it slightly lags in multi-threaded tasks. For new PC builders, the AM5 platform’s Ryzen 5 7600X or 9600X offers higher clock speeds (up to 5.4 GHz) and better future upgrade potential. However, for existing AM4 systems, the 5500X3D remains the more economical choice.
Extending the Life of AM4 #
The AM4 socket, introduced in 2016, has offered compatibility with multiple generations of Ryzen processors from Zen to Zen 3, and even some Bulldozer-architecture APUs. This has provided users with a flexible upgrade path, especially benefiting budget-conscious gamers. While the AM5 platform, launched in 2022, supports DDR5 and PCIe 5.0 and is promised to be supported until at least 2027, the AM4 platform continues to be competitive in the market due to its mature ecosystem and lower cost.
The Ryzen 5 5500X3D provides an upgrade solution for AM4 users that balances performance and cost. Its 3D V-Cache technology effectively boosts gaming performance, making it ideal for existing AM4 platform users. The release of the 5500X3D arguably extends the lifespan of the AM4 platform, offering more choices for budget-oriented gamers.
