Intel’s recently published patent, EP4579444A1, describes a novel concept called Software Defined Super Core (SDC). Unlike traditional methods that focus on hardware scaling—such as higher frequencies, advanced process nodes, and larger cores—SDC attempts to boost single-thread performance through software-defined scheduling and core collaboration.
This approach comes at a critical time. With Moore’s Law slowing and the power wall limiting frequency scaling, gains from traditional performance methods are diminishing. Intel’s SDC offers a different path forward by rethinking how single-thread workloads are executed.
How SDC Works: Merging Cores for Higher IPC #

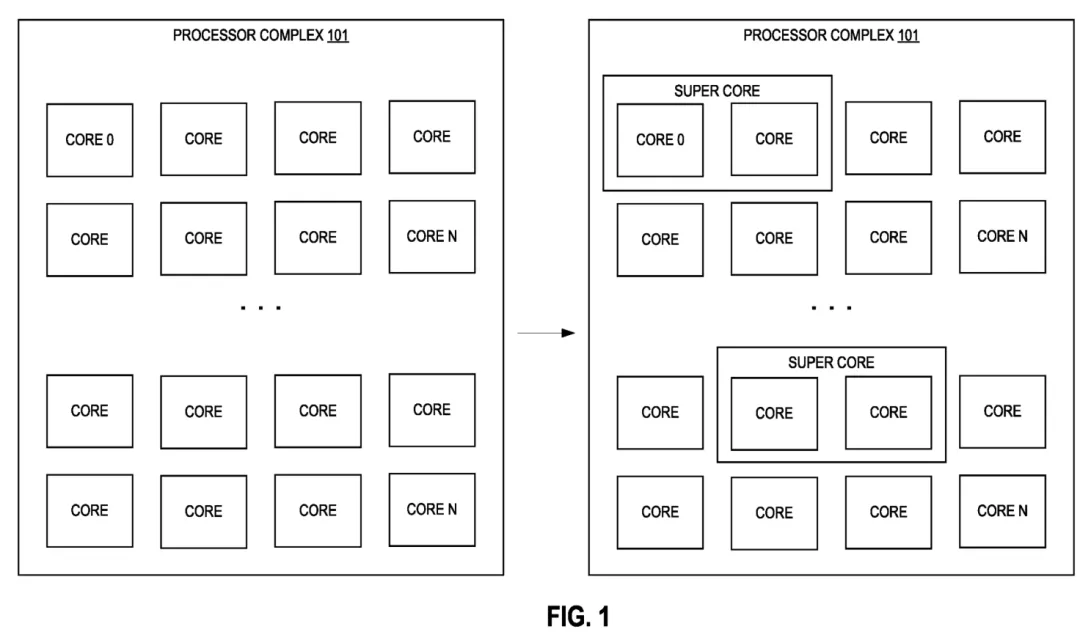

The central idea of SDC is to allow multiple smaller cores to virtually merge into one larger logical core when needed. Together, these cores execute a single thread that would traditionally run on one core.
Key mechanics include:
- Instruction fragmentation: Breaking down single-thread workloads into smaller instruction streams for parallel execution.

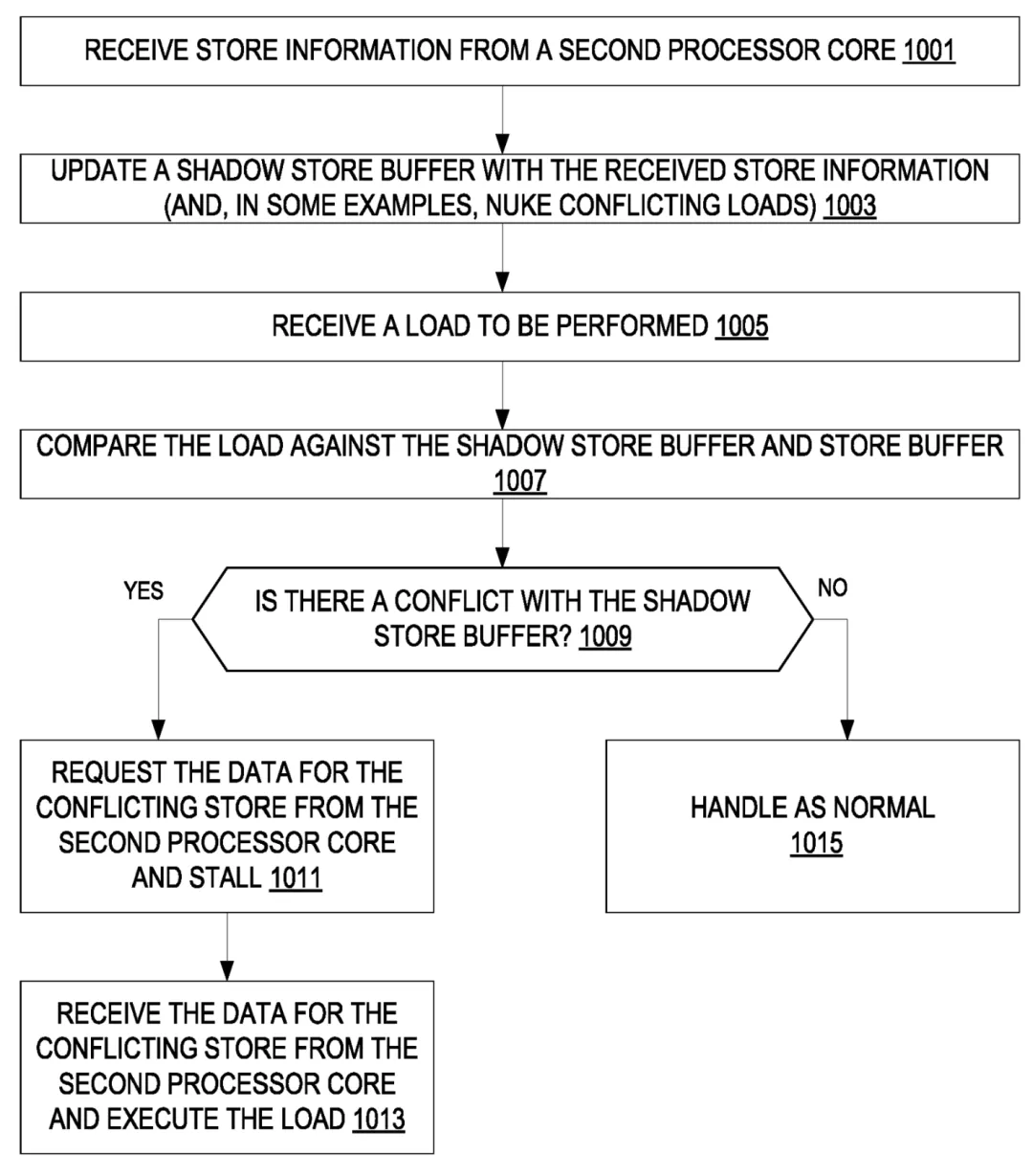

- Shadow store buffers: Maintaining instruction order and data consistency across collaborating cores.
- Seamless OS integration: Applications and operating systems still recognize the workload as single-threaded, so no code changes are required.
Unlike traditional multi-threading, this method aims to increase Instructions Per Cycle (IPC) for single-thread performance. In practical terms, it’s like two workers handling the same job simultaneously while appearing as one efficient worker from the outside.
Potential benefits include:
- Boosting physics threads in gaming engines.
- Speeding up sequential tasks in scientific computing.
- Reducing bottlenecks in compilers and front-end workloads.
But challenges remain—particularly low-latency inter-core communication, synchronization overhead, and OS scheduler adaptation. Without these, the gains from merging cores may be offset by added complexity.
Alignment with Intel’s CPU Strategy #
The SDC concept aligns with Intel’s ongoing hybrid architecture strategy. Since Alder Lake, Intel has combined P-cores (performance cores) with E-cores (efficiency cores), aiming for better performance per watt.
- Hybrid design primarily boosts multi-thread throughput.
- Single-thread performance still depends on P-core size and frequency.
- With SDC, Intel could logically merge multiple cores into a super core, addressing single-thread bottlenecks without requiring larger, hotter cores.
Additionally, Intel’s investments in AI accelerators and heterogeneous computing (e.g., Meteor Lake NPU, Gaudi AI chips, Arc GPUs) show a trend toward collaborative multi-unit design. SDC extends this philosophy to traditional CPU workloads.
Potential Impact and Future Outlook #
If commercialized, SDC could give Intel a significant competitive edge:
- AMD continues improving IPC through Zen architecture and advanced TSMC nodes.
- NVIDIA dominates data centers with GPU acceleration (e.g., Blackwell architecture).
- Intel, meanwhile, could carve out a niche by addressing single-thread performance bottlenecks, especially in gaming and high-IPC applications.
That said, the technology is still in the patent stage. Key hurdles include:
- Designing ultra-low-latency inter-core communication.
- Updating OS schedulers to recognize and allocate SDC cores.
- Balancing power consumption vs. energy efficiency when merging cores.
Whether SDC debuts after Arrow Lake remains uncertain, but the idea reflects a larger trend:
➡️ As physical hardware scaling slows, software-defined solutions may become the next frontier in CPU performance.
Just as virtualization reshaped server computing, Intel’s Software Defined Super Core could one day redefine our expectations for single-core performance.
