AMD is preparing a key architectural breakthrough for its next-generation Zen 6 processors: a new die-to-die (D2D) interconnect technology. This innovation first appeared in the Strix Halo APU and marks a major leap forward for AMD’s chiplet design. While AMD has continuously improved process nodes and CPU cores, the connection between CCD (Core Chiplet Die) and the I/O die has remained largely unchanged since Zen 2. Zen 6 aims to change that.
Limitations of Current SERDES Interconnects #
Today’s Ryzen processors rely on SERDES PHY modules, which serialize internal parallel signals into high-speed bitstreams before sending them across the organic substrate. The receiving end then deserializes the data.
Although effective, this process introduces:
- Extra power consumption from encoding, equalization, and clock recovery.
- Added latency from serialization/deserialization cycles.
- Bandwidth limitations that struggle to keep up with growing demands from GPUs, NPUs, and AI accelerators.
As workloads shift toward AI inference, heterogeneous compute, and HPC, this bottleneck becomes increasingly problematic.

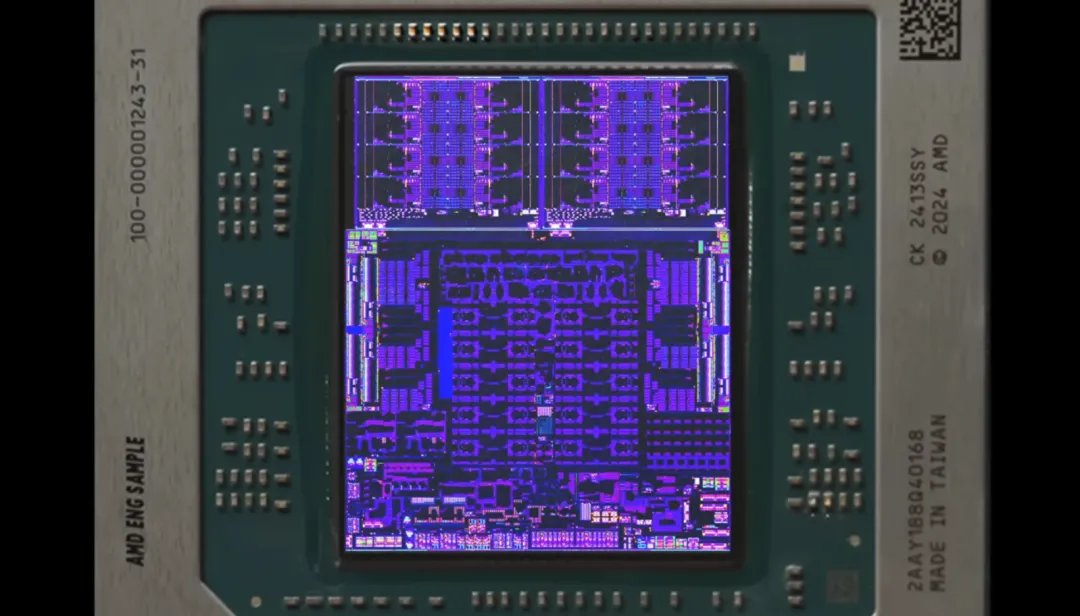

Strix Halo’s Parallel Interconnect Preview #

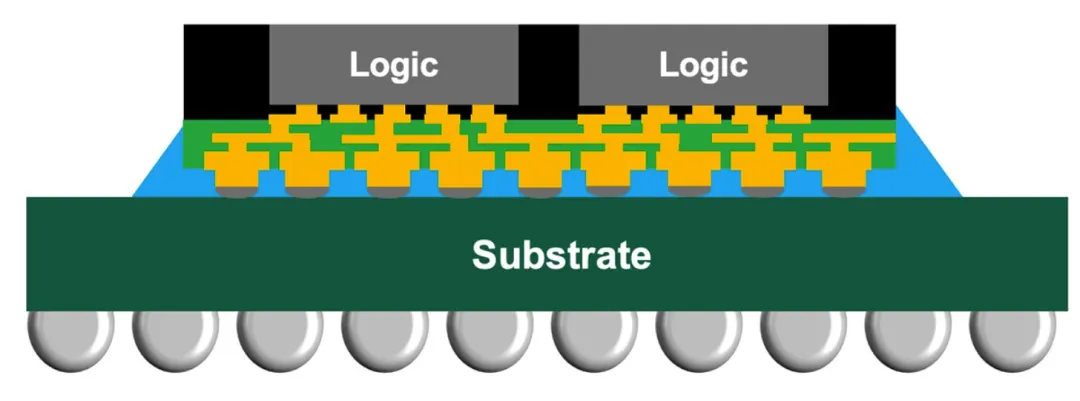

The Strix Halo APU offers a glimpse into AMD’s solution. Using TSMC’s InFO-oS (Integrated Fan-Out on Substrate) technology with a Redistribution Layer (RDL), the design enables direct parallel communication between chiplets through dense, short wiring paths.
Key differences include:
- Replacing SERDES modules with wide parallel ports.
- Leveraging micro-bumps in a fan-out structure for efficient die-to-die signaling.
- Achieving lower latency and reduced power draw thanks to the elimination of serialization overhead.
This packaging-level breakthrough signals what Zen 6 will bring to desktop and server CPUs.
Why It Matters for Zen 6 #
The shift to parallel interconnects offers several advantages:
- Efficiency gains: Reduced power use and latency.
- Higher bandwidth: Parallel buses can scale easily with multiple interconnect ports.
- Better heterogeneous computing: Smooth data exchange between CPU, GPU, and NPU for AI-driven workloads.
- Scalability in servers and HPC: Improved inter-CCD communication for large, multi-chip systems.
Challenges remain, particularly in RDL design complexity, manufacturing yields, and cost efficiency. Still, TSMC’s proven InFO technology in mobile SoCs makes its adaptation for high-performance computing feasible.
Strategic Significance #
Zen 6’s new interconnect underscores AMD’s commitment to advancing chiplet architecture. By addressing one of the biggest bottlenecks in multi-die CPUs, AMD positions Zen 6 as:
- A more power-efficient platform.
- A high-performance contender in HPC and AI markets.
- A step toward greater chiplet integration, paving the way for future heterogeneous processors.
The Strix Halo APU serves as a “preview release”, testing this new interconnect approach before it rolls out in Zen 6 CPUs. As launch nears, expect AMD to highlight this as a major selling point.
Final Thoughts #
Rather than relying solely on process shrinks, AMD is doubling down on advanced packaging and interconnects to deliver performance and efficiency. With Zen 6, the shift to parallel die-to-die communication could become a defining feature, solidifying AMD’s edge in the era of AI, cloud, and high-performance computing.
Frequently Asked Questions (FAQ) #
What is AMD Zen 6’s new die-to-die interconnect? #
Zen 6 introduces a parallel interconnect that replaces traditional SERDES links. This reduces latency, lowers power consumption, and increases bandwidth between chiplets.
How does Strix Halo preview Zen 6 technology? #
The Strix Halo APU uses TSMC’s InFO-oS packaging with a Redistribution Layer (RDL) to enable direct chip-to-chip communication. This design is expected to carry over to Zen 6 CPUs.
Why is the new interconnect important for AI and HPC? #
AI and HPC workloads require high bandwidth and low-latency communication between CPU, GPU, and NPU units. The parallel interconnect improves efficiency, making Zen 6 ideal for these tasks.
How does Zen 6 improve over Zen 5? #
While Zen 5 focused on core microarchitecture upgrades, Zen 6 adds a revolutionary interconnect system that boosts efficiency across heterogeneous computing units, especially in multi-chip and server deployments.
When will AMD Zen 6 launch? #
AMD has not announced an official release date yet. However, based on industry trends and the appearance of Strix Halo, Zen 6 is expected to debut in the second half of 2025 or early 2026.
