Against the backdrop of rising processor performance, memory bandwidth is increasingly becoming a system bottleneck. AMD has recently filed a patent for High Bandwidth DIMM (HB-DIMM), a technology that promises to double memory bandwidth without requiring faster DRAM chips. Instead of depending solely on manufacturing process upgrades, HB-DIMM achieves higher throughput by embedding additional logic directly into the memory module.
How HB-DIMM Works #

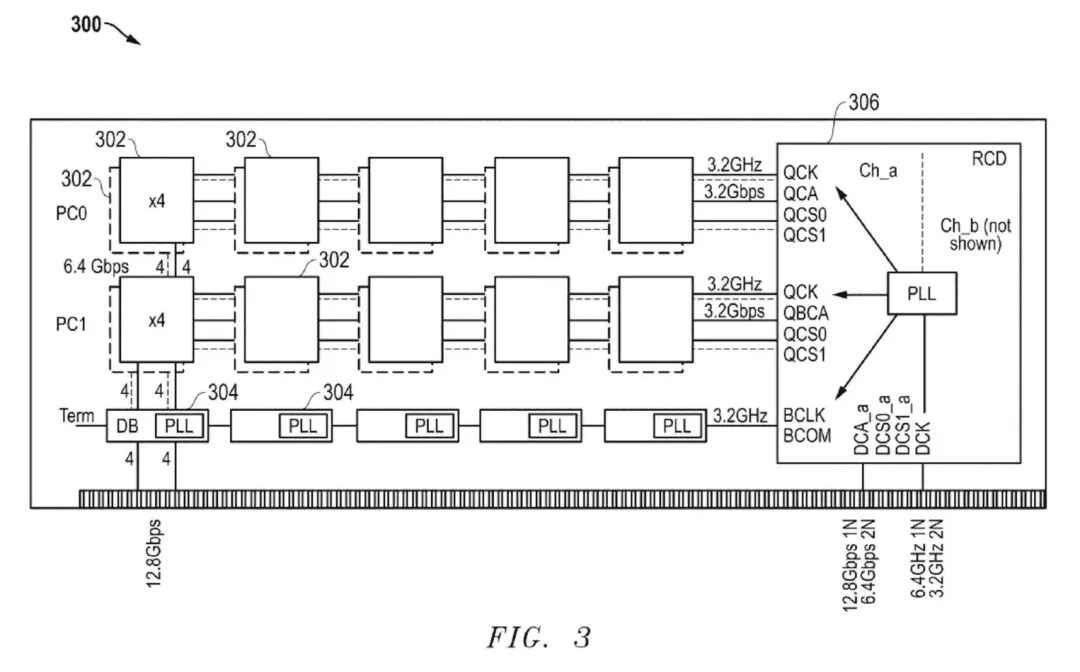

At the core of HB-DIMM is the use of RCD (Register/Clock Driver) and data buffer chips on a standard DDR5 module. By applying retiming and multiplexing, the module merges two DRAM data streams into a single higher-speed output.
For example:
- Current DDR5 → 6.4 Gb/s per pin
- With HB-DIMM → 12.8 Gb/s per pin
This effectively doubles the bandwidth while keeping the existing DDR5 manufacturing process unchanged. Unlike traditional approaches that push DRAM process scaling, HB-DIMM improves performance at the module level, making it easier and faster to adopt.
Applications in AI, Data, and APUs #
The patent highlights HB-DIMM’s potential in AI training, large-scale data processing, and integrated graphics.
- AI/ML workloads → Faster data access improves training and inference efficiency.
- APUs/iGPUs → Overcome the bandwidth bottleneck of shared system memory, boosting graphics and AI responsiveness.

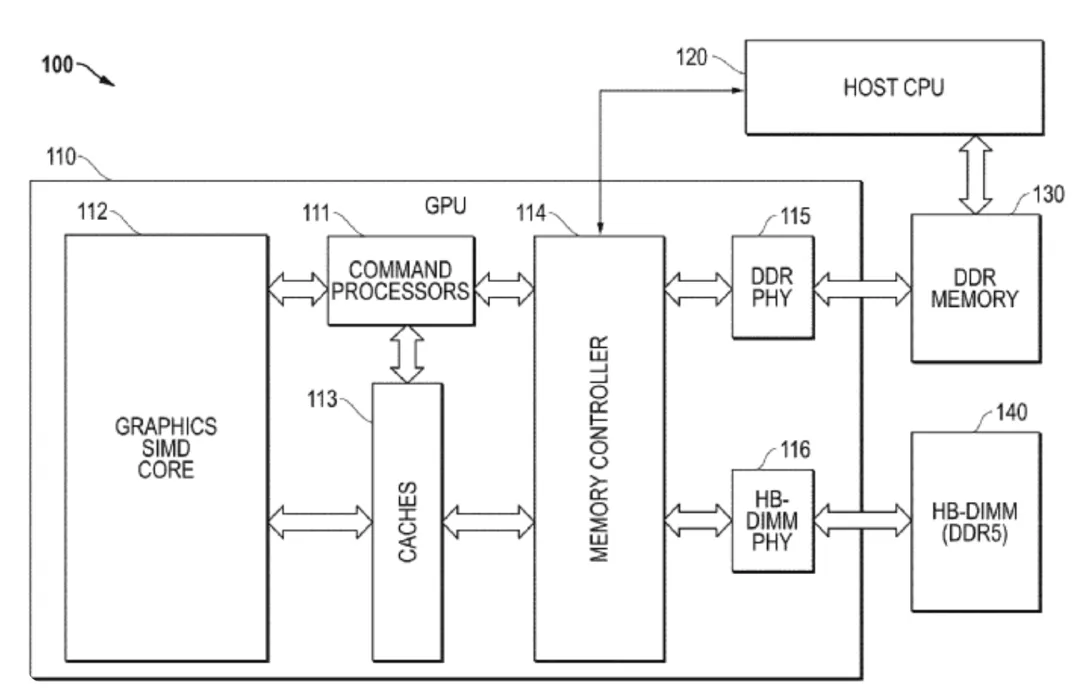

- Dual PHY Design → A standard DDR5 PHY manages regular memory, while an HB-DIMM PHY handles a smaller, high-speed memory pool—balancing capacity and bandwidth.
Challenges: Power and Cooling #
Merging two data streams into one high-speed signal requires extra logic and circuitry, which increases power consumption and heat output.
This means:
- Systems will need stronger cooling solutions.
- Power efficiency must be carefully balanced, especially for laptops and compact PCs.
Still, compared to the slow and costly evolution of DRAM processes, HB-DIMM offers a faster path to bandwidth scaling by focusing on DIMM-level innovation.
AMD’s History in Memory Innovation #
AMD is no stranger to memory breakthroughs. Its collaboration with SK Hynix to create HBM (High Bandwidth Memory) reshaped GPU memory with 3D stacking and ultra-wide buses.
- HBM → Achieves bandwidth through wide interfaces and stacking.
- HB-DIMM → Achieves bandwidth through logic multiplexing.
Both approaches show AMD’s multi-dimensional strategy in tackling memory bottlenecks.
Final Thoughts #
If HB-DIMM proves commercially viable, it could reshape memory architecture across data centers, AI accelerators, and even consumer APUs. By doubling bandwidth without needing new DRAM chips, AMD offers the industry a cost-effective, scalable path to keep pace with growing computing demands.
As AI, graphics, and high-performance computing workloads continue to expand, HB-DIMM could become a key differentiator in AMD’s product lineup—and a powerful tool for the wider semiconductor industry.
