The AMD Radeon RX 9060 XT graphics card officially debuted at Computex 2025. As a mainstream gaming GPU based on the RDNA 4 architecture, its performance and price positioning are naturally drawing attention. This graphics card comes in both 8GB and 16GB VRAM versions, catering to gamers with different budgets. Recent benchmark data leaked from the Geekbench database provides us with an initial look at its performance, allowing for comparisons with previous RDNA 3 architecture cards and competitor products.
The Radeon RX 9060 XT is powered by the Navi 44 GPU, fabricated using TSMC’s 4nm process technology. It features 2048 stream processors, 32 ray tracing accelerators, and 64 AI accelerators. While the core configuration is similar to the RX 7600 XT, it benefits from significant performance enhancements due to RDNA 4 architecture optimizations. Its official boost frequency is as high as 3.13GHz, with some custom models potentially reaching 3.2-3.3GHz, making it AMD’s first GPU to break the 3GHz barrier out of the box. The card is equipped with a 128-bit bus interface and 20Gbps GDDR6 memory, delivering a bandwidth of 320GB/s, an 11% increase over the RX 7600 XT’s 18Gbps memory. In terms of power consumption, the Total Board Power (TBP) ranges between 150W and 182W, depending on the VRAM capacity, indicating good power efficiency. Additionally, the card supports PCIe 5.0 x16, DisplayPort 2.1a, and HDMI 2.1b outputs, an upgrade from the RX 7600 XT’s display interface configuration.

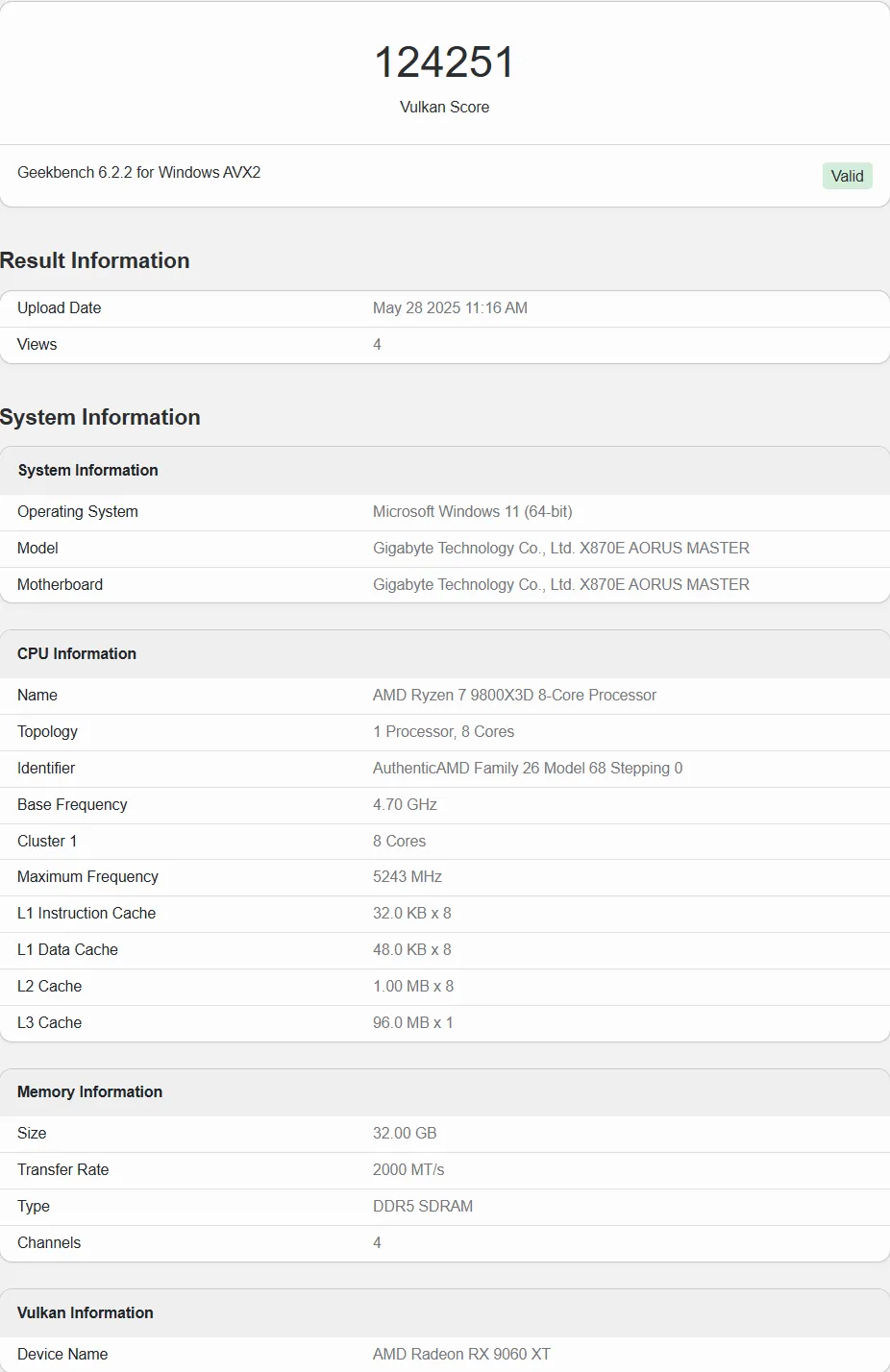

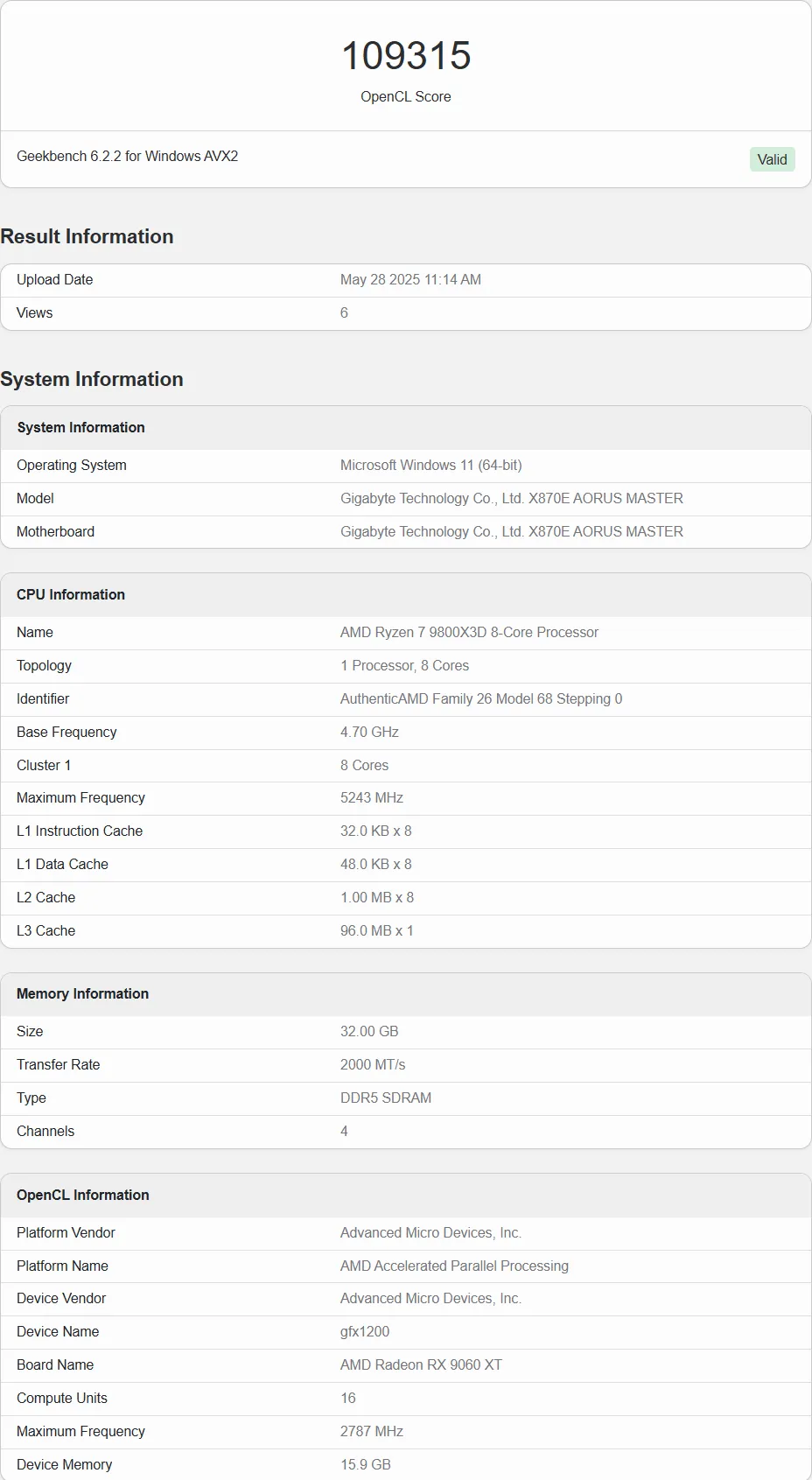

Geekbench benchmark data shows that the RX 9060 XT scored 109,315 in OpenCL tests, a 31% improvement over the RX 7600 XT, but 14% lower than the RX 7700 XT. In Vulkan tests, it scored 124,251, leading the RX 7600 XT by approximately 25% but trailing the RX 7700 XT by about 12%. The test system utilized an AMD Ryzen 7 9800X3D processor, 32GB DDR5-8000 memory, and a Gigabyte X870E Aorus Master motherboard, indicating no obvious bottlenecks in the test environment. The GPU’s maximum frequency during testing was 2787MHz, lower than the officially stated 3.13GHz, which might have affected the test results. It’s important to note that Geekbench’s synthetic tests primarily evaluate computational performance and do not necessarily represent actual gaming performance. Therefore, the RX 9060 XT’s real-world performance under gaming loads still requires further validation.
The RX 9060 XT is positioned to compete with the NVIDIA GeForce RTX 5060 Ti. AMD officially claims that at 1440p resolution, the RX 9060 XT achieves an average performance lead of approximately 6% across 40 games compared to the RTX 5060 Ti. Although its OpenCL and Vulkan scores are slightly lower than the RTX 5060 Ti’s (138,869 and 133,861 respectively), the RX 9060 XT may have advantages in memory-intensive games and ray tracing scenarios due to RDNA 4 architecture optimizations and its large 16GB VRAM capacity. Compared to the GDDR7 memory used by the RTX 5060 Ti, the RX 9060 XT’s GDDR6 memory is slightly slower, but the benefit lies in its lower cost, which helps maintain price competitiveness.
With support from the RDNA 4 architecture, the RX 9060 XT is fully compatible with AMD’s latest FidelityFX Super Resolution 4 (FSR 4) technology. FSR 4 introduces machine learning-enhanced super resolution and frame generation capabilities, significantly improving game fluidity and visual quality. AMD states that FSR 4 will be further optimized later in 2025 through the Redstone update, which will support advanced features including Ray Reconstruction and Radiance Caching. These technological advancements enable the RX 9060 XT to provide a smooth experience in 1080p and 1440p games, making it particularly suitable for budget-conscious players seeking high value.
In terms of market positioning, the RX 9060 XT is designed by AMD as a direct successor to the RX 7600 XT, while also approaching the performance of the RX 7700 XT. Compared to the RX 7600 XT, its architectural upgrades and frequency boosts deliver a 25%-36% performance gain. When compared to the RX 7700 XT, the RX 9060 XT offers similar performance at a lower price, potentially performing better in games supporting ray tracing and FSR 4. AMD emphasizes that the RX 9060 XT aims to be the strongest performing graphics card under $350, specifically targeting 1080p esports players and mainstream 1440p gamers. The 8GB version focuses on esports scenarios, meeting the needs of competitive games with lower VRAM requirements.
The GPU market in 2025 is becoming increasingly competitive. NVIDIA’s RTX 5060 and RTX 5060 Ti maintain a performance edge with their Blackwell architecture and GDDR7 memory. AMD, on the other hand, is attempting to capture market share in the mid-range segment through its RDNA 4 architecture and a more competitive pricing strategy. The release of the RX 9060 XT is timely, not only filling AMD’s product gap in the mainstream price segment but also offering players a more forward-looking choice with its high VRAM configuration and FSR 4 technology.
Overall, the RX 9060 XT, with its RDNA 4 architecture performance improvements, 16GB VRAM capacity advantage, and FSR 4 technological support, is poised to be a significant option in the mid-range gaming market. Although Geekbench tests show its synthetic performance is slightly lower than the RX 7700 XT, its actual gaming performance may be more competitive. Official benchmarks and player reviews in the coming weeks will further reveal the true capabilities of this graphics card, providing consumers with clearer purchasing guidance.
