AMD recently released an optimized version of the Stable Diffusion 3 Medium model, specifically designed for its XDNA 2 Neural Processing Unit (NPU) and utilizing the BF16 floating-point precision format. This model achieves lower memory footprint and higher generation efficiency during the text-to-image creation process. It’s now available for trial in the Amuse 3.1 Beta version, allowing users to run it directly on compatible AMD Ryzen AI devices.
Stable Diffusion 3 Medium is an open-source diffusion model developed by Stability AI for generating images from text. While the standard version of this model typically requires significant computing resources, AMD’s optimized version, through its BF16 precision adjustments, reduces memory demands. In a typical operating environment, the standard model might occupy over 16GB of memory, but the optimized version only requires about 9GB to generate 1024x1024 resolution images. This allows it to run smoothly on laptops with 24GB of system memory without additional quantization or sacrificing image quality.
XDNA 2 NPU: Powering On-Device AI #
XDNA 2 is the NPU integrated into AMD’s Ryzen AI processors, specifically designed to accelerate AI tasks. It boasts a computing capability of 50 TOPS (trillions of operations per second) and supports various data types, including BF16. This precision format enhances processing speed while maintaining computational accuracy. Compared to FP32, BF16 can reduce memory bandwidth requirements by half, thereby accelerating matrix operations and convolution. In text-to-image generation, this directly translates to shorter inference times, for example, reducing the cycle from input prompt to output image to just a few seconds, depending on prompt complexity and hardware configuration.
The AMD Ryzen AI 300 series processors are the primary platform for running this model. These processors feature the Zen 5 architecture, integrate RDNA 3.5 graphics units, and the XDNA 2 NPU, offering a total computing performance of over 50 TOPS. Taking the Ryzen AI 9 HX 370 as an example, it’s equipped with 12 CPU cores, 16 graphics compute units, and supports up to 16GB of LPDDR5X memory. Laptops in this series typically come with 24GB or more system memory, making them suitable for mobile AI applications. In contrast, the Ryzen AI MAX+ series targets higher performance demands, offering stronger NPU configurations for professional workstation-grade tasks.
To run the model, users need to ensure their device meets the hardware requirements: an AMD Ryzen AI 300 series or Ryzen AI MAX+ processor with a 50 TOPS or higher XDNA 2 NPU, and at least 24GB of system memory. The operating steps involve downloading the latest Adrenalin graphics driver, installing the Amuse 3.1 Beta application, enabling high-quality mode within the app, and activating the XDNA 2 Stable Diffusion offload function. Amuse 3.1 is an AI image generation tool developed by AMD that supports the integration of various models. Users can input text prompts through a simple interface, such as “a serene lakeside sunrise,” to generate corresponding images.
Advanced Features and Practical Applications #

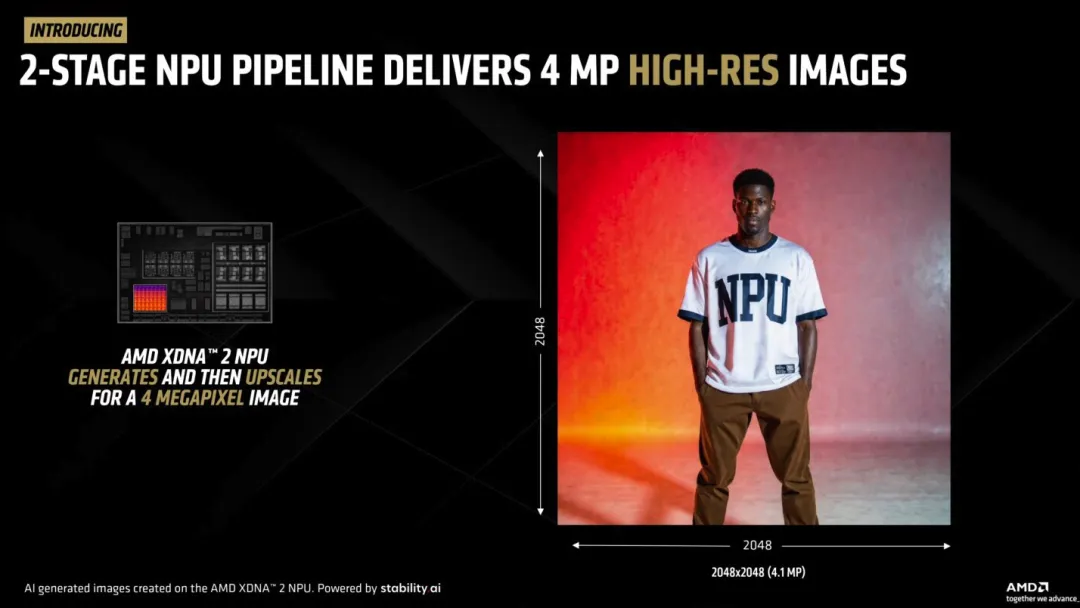

Another feature of this model is its built-in secondary pipeline processing. Driven by the XDNA 2 NPU, this pipeline can upscale an initially generated 2-megapixel (1024x1024) image to 4-megapixel (2048x2048) resolution. This resolution enhancement is based on super-resolution technology, utilizing neural network interpolation and detail restoration algorithms to ensure the output image is suitable for printing or high-definition display without external software intervention. The entire process is completed locally, requiring no internet connection or subscription services, which provides users with a flexible way to create images.
In practical applications, this optimized model is suitable for graphic design and content creation. For example, users can generate custom brand image libraries, quickly iterating design concepts by adjusting prompt parameters. If you input “tech company logo, blue tones, abstract geometric shapes,” the model can output multiple variations in seconds, which users can then refine or upscale as needed. Compared to cloud services, local execution avoids data transfer delays and privacy risks, making it especially suitable for mobile work environments—like processing photos on a plane using a local model.
Collaboration and Technical Details #
AMD’s collaboration with Stability AI is not new. As early as Computex 2024, they launched the SDXL Turbo model, another FP16 optimized version for the XDNA 2 NPU. That model combined FP16 precision with INT8 performance, focusing on real-time text-to-image generation. SD 3 Medium further expands on this, supporting more complex prompt parsing and multimodal inputs, such as combining text with reference images to generate variations.
From a technical perspective, the application of BF16 precision in AI models stems from its balance in training and inference. BF16 uses an 8-bit exponent and a 7-bit mantissa, which reduces storage requirements compared to FP32 while retaining sufficient dynamic range to avoid the precision loss that INT8 might introduce. In diffusion models, this helps with noise removal and sampling steps, improving generation consistency and detail fidelity. The core architecture of Stable Diffusion 3 Medium includes a Variational Autoencoder (VAE) and a U-Net network, with the former responsible for image encoding and the latter handling the diffusion process. AMD’s optimization primarily targets the U-Net’s weight quantization, ensuring efficient execution on XDNA 2 hardware.
At the hardware level, the XDNA 2 NPU’s design emphasizes power efficiency. Its peak power consumption is kept within 15 watts, maintaining stable performance even in battery-powered mode. This, combined with the Ryzen AI processor’s overall power management, supports dynamic voltage and frequency scaling, allocating resources based on task load. When generating images, the NPU can independently handle AI computations, freeing up the CPU and GPU for other tasks, thereby improving multitasking efficiency.
For tech enthusiasts, the introduction of this model expands the possibilities of local AI. Users can experiment with various generative tasks on their laptops without relying on high-end desktops or cloud servers. In education, it can be used to visualize scientific concepts, such as inputting “quantum entanglement diagram” to generate explanatory images. For entertainment, it supports the creation of personalized artworks. The model is also compatible with the open-source ecosystem, allowing users to download weights via the Hugging Face platform and integrate them into custom scripts for further customization.
Overall, the optimization of SD 3 Medium demonstrates the tight integration of hardware and software. By combining BF16 with XDNA 2, it achieves efficient image generation on memory-constrained devices, driving the popularization of AI PCs. In the future, as AMD processors iterate, this technology may extend to more model types, such as video generation or 3D modeling, further enriching the user experience.
