4D spatial intelligence reconstruction is a core challenge in computer vision. Its goal is to recover the dynamic evolution of 3D space from visual data, integrating static scene structure with temporal changes. By doing so, it builds space-time representations that are critical for virtual reality, digital twins, and intelligent interaction systems.
Research in this field generally unfolds along two axes:
- Foundational reconstruction: extracting precise low-level cues such as depth, camera pose, and dynamic point clouds.
- High-level understanding: modeling temporal associations, physical constraints, and interactions within the scene.
This multidimensional approach is becoming a foundational layer of next-generation AI. Whether training embodied agents with physical common sense or building world models, high-fidelity 4D representation serves as the bedrock.
Notably, research is shifting from pure geometric reconstruction toward modeling physical properties and interaction logic. This shift allows spatial intelligence not only to reproduce visually realistic scenes but also to enable plausible, interactive simulations.

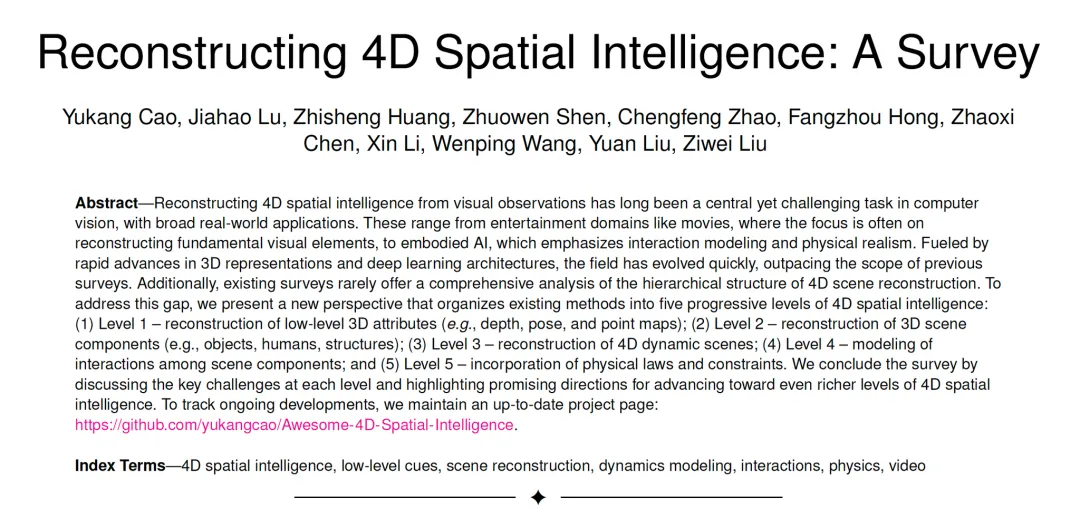

To fill the gap in systematic analysis, researchers from Nanyang Technological University’s S-Lab, Hong Kong University of Science and Technology, and Texas A&M University conducted a large-scale survey, reviewing more than 400 representative papers and proposing a layered framework for 4D spatial intelligence.
A Five-Level Framework for 4D Spatial Intelligence #
The survey organizes existing methods into five progressive levels, each representing a deeper layer of spatial understanding:
- Level 1 – Reconstruction of basic 3D attributes (depth, pose, point clouds)
- Level 2 – Reconstruction of scene components (objects, humans, buildings, environments)
- Level 3 – Reconstruction of full 4D dynamic scenes
- Level 4 – Reconstruction of interactions among scene elements
- Level 5 – Reconstruction with physical rules and constraints

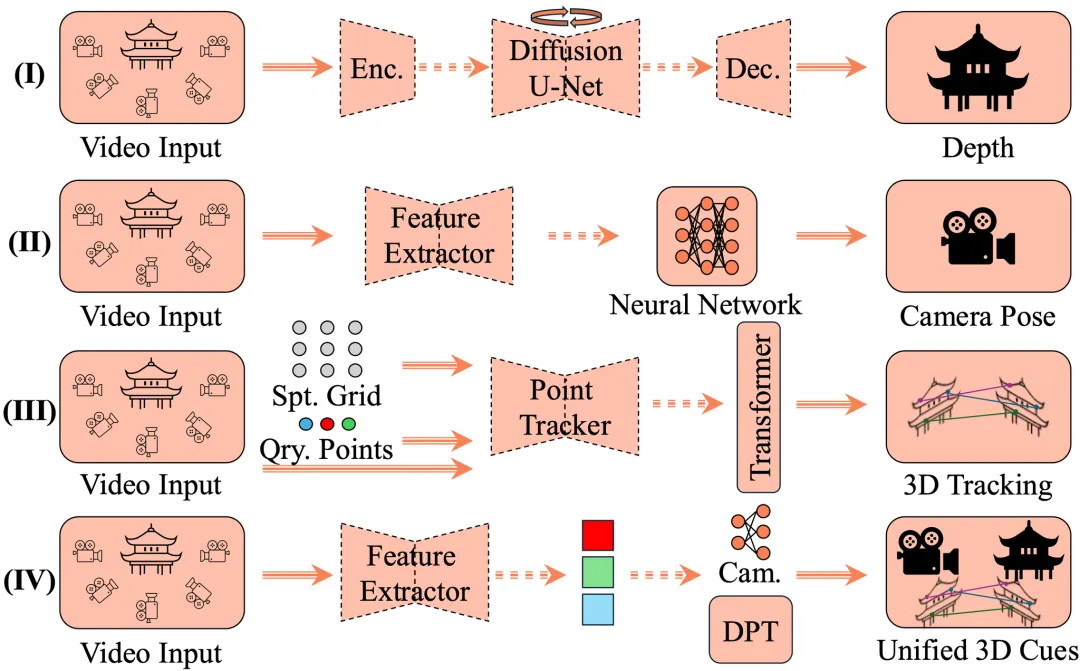

Level 1: Foundational 3D Attributes #
At the base, AI must recover depth, camera pose, point clouds, and dynamic tracking. Traditional methods decompose this into sub-tasks:
- Keypoint detection and matching (SIFT, SuperPoint, LoFTR)
- Robust estimation (AffineGlue)
- Structure-from-Motion (SfM) and bundle adjustment (BA)
- Multi-view stereo (MVS)
Recent advances include DUSt3R, which applies joint optimization for efficiency, and VGGT, a Transformer-based framework that delivers end-to-end 3D reconstruction in seconds.

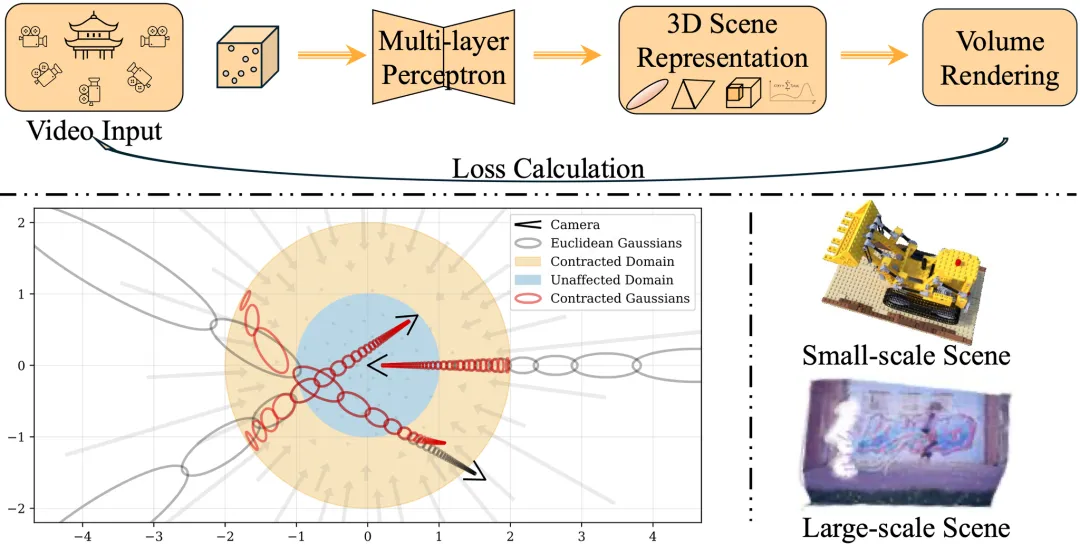

Level 2: Reconstructing Scene Components #
Once basic cues are extracted, focus shifts to detailed modeling of scene elements—humans, objects, and structures. While geometry can be captured, modeling their dynamic relationships remains limited.
Breakthroughs such as NeRF (Neural Radiance Fields), 3D Gaussian splatting, and deformable meshes (e.g., DMTet, FlexiCube) now allow high-fidelity detail preservation and structural consistency. These advances are already transforming visual effects, VR, and AR applications.

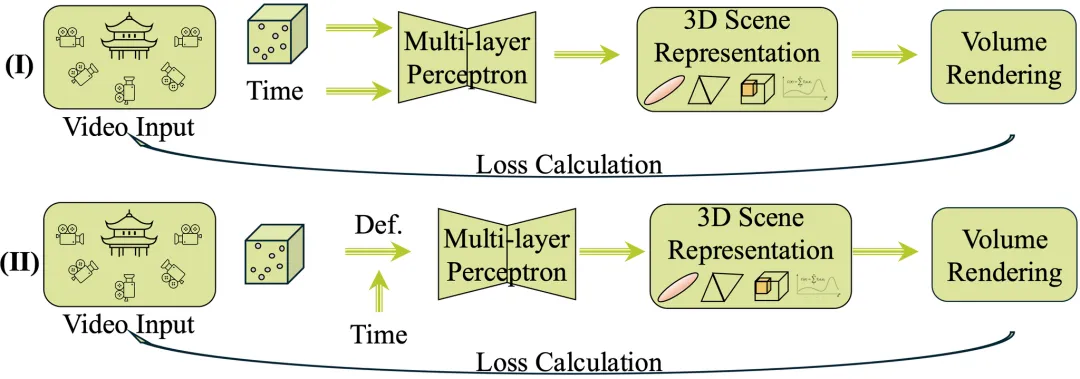

Level 3: Dynamic 4D Scene Reconstruction #
Here, the time dimension is introduced to move beyond static snapshots. Two major approaches dominate:
- Deformation field models (NeRFies, HyperNeRF): learn spatiotemporal deformation fields on top of static NeRFs.
- Explicit temporal encoding (Dynamic NeRF, DyLiN): embed time variables directly into 3D networks.
Applications span from general scene dynamics to human motion modeling, reflecting the diverse requirements of immersive experiences like bullet-time effects.

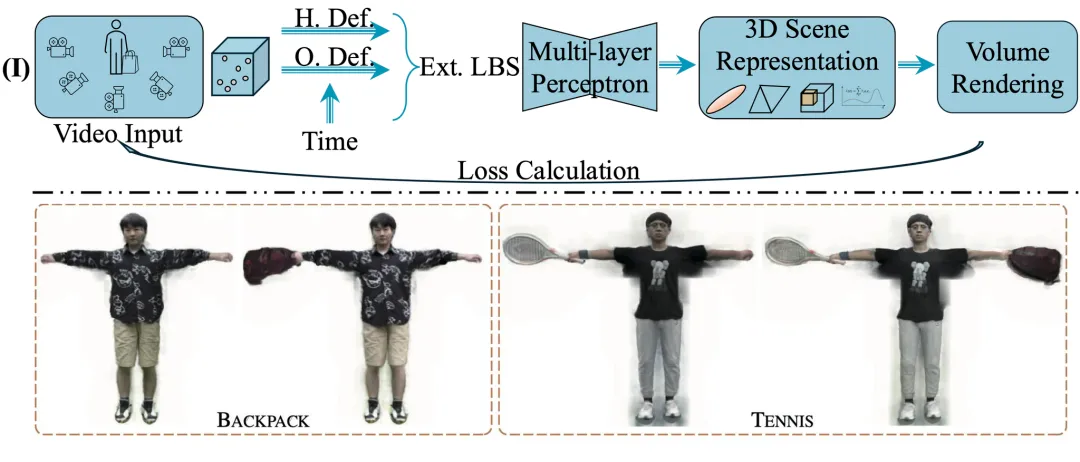

Level 4: Modeling Interactions #
This level marks a breakthrough—capturing dynamic interactions among scene components.
Early works such as BEHAVE and InterCap pioneered extracting human-object interactions from video. Building on advanced 3D representations, modern algorithms like StackFlow and SV4D achieve robust reconstruction of both object geometry and trajectories.
Emerging research on human–scene interaction (HOSNeRF, One-shot HSI) is pushing toward modeling complex, physically plausible engagements between people and environments.

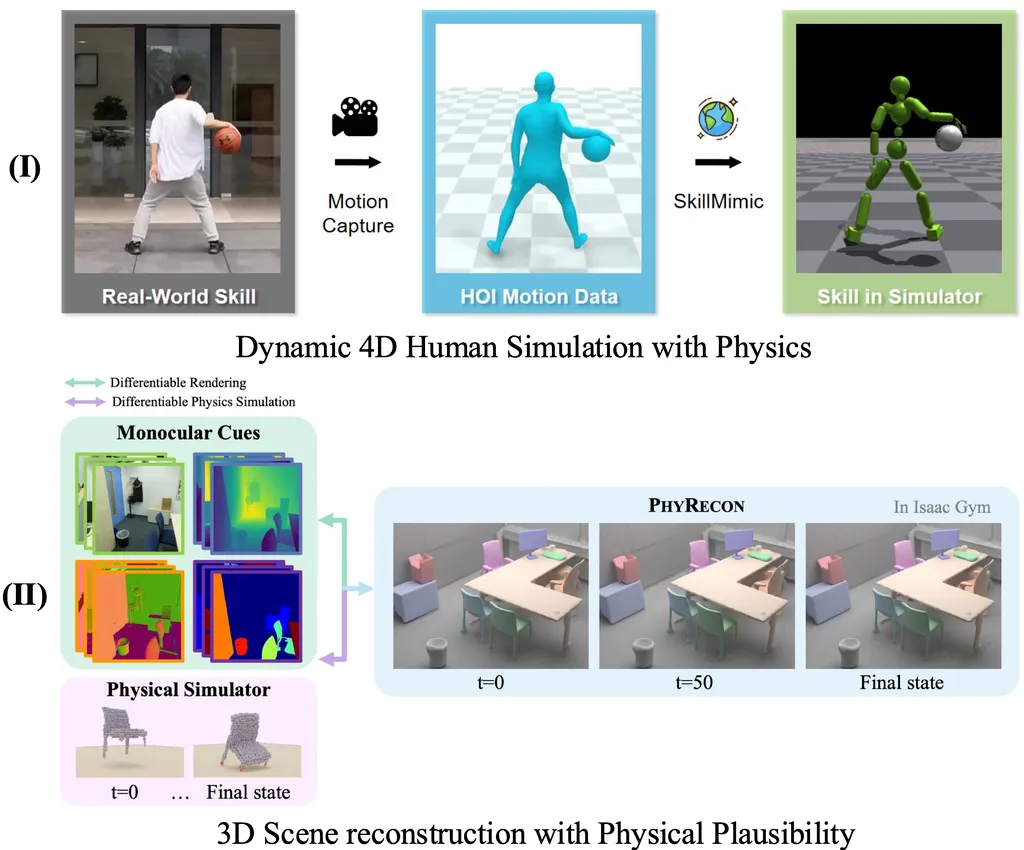

Level 5: Infusing Physical Rules #
Despite progress, most interaction models lack physical realism—they omit fundamental constraints like gravity and friction. Level 5 integrates physics into reconstruction:
- Human motion simulation: Frameworks such as PhysHOI and Perpetual Motion, combined with simulators like IsaacGym and reinforcement learning, convert video into physically valid motion.
- Scene physics modeling: Innovations like PhysicsNeRF and PBR-NeRF extend reconstruction to object deformation, collision, and other physical effects.
This layered progression mirrors human learning: first observing (Level 1), recognizing objects (Level 2), understanding motion (Level 3), mastering interaction (Level 4), and finally grasping physical laws (Level 5). With each level, AI moves from looking real to acting real.
Applications and Outlook #
Already, 4D spatial intelligence is proving transformative in film visual effects and autonomous driving simulation. With the rise of Level 5 physics engines, future human–AI interaction and digital twin systems will become increasingly lifelike.
And perhaps, not too far in the future, we may see a Level 6—where the line between the virtual and the real grows even thinner.
